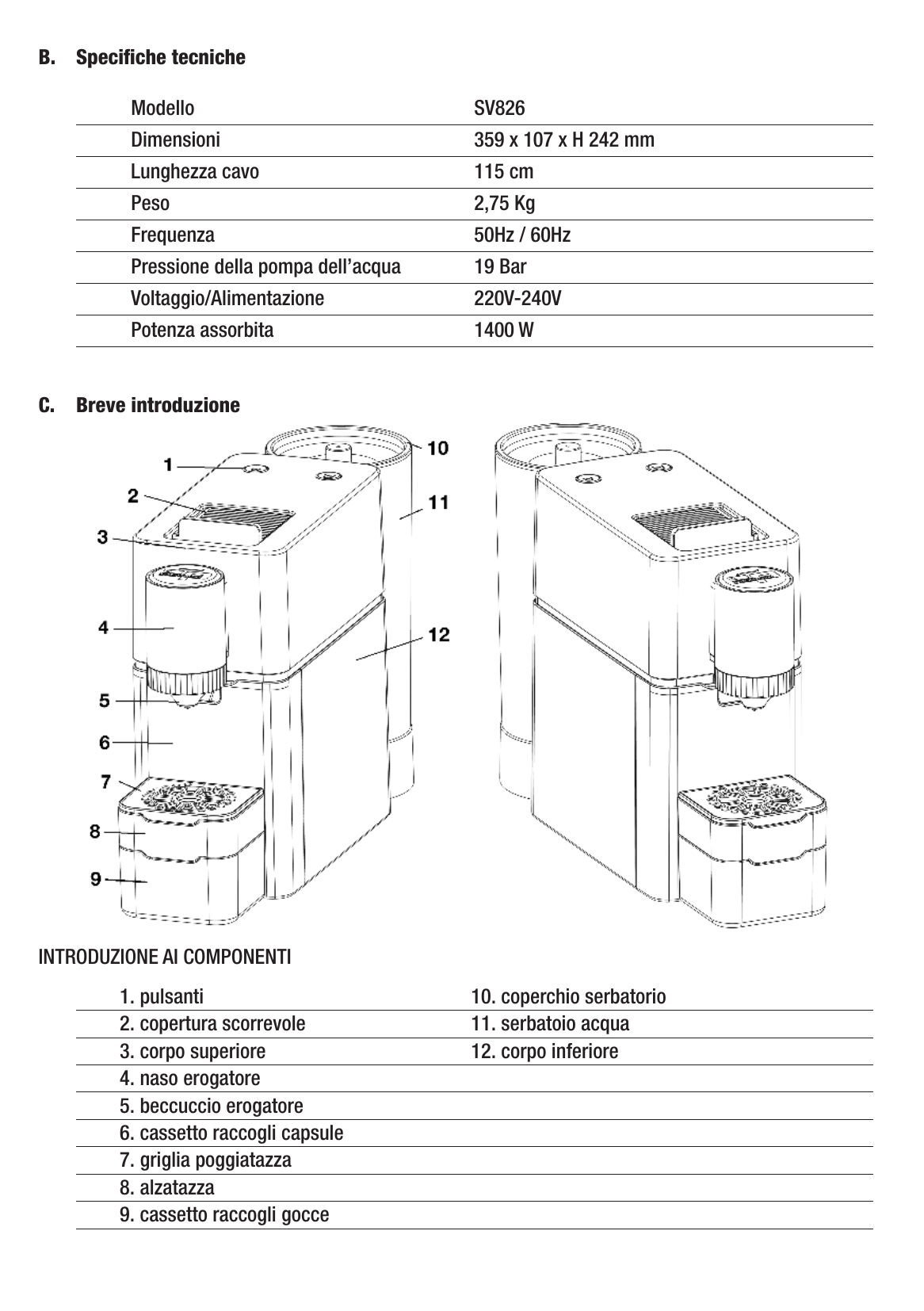

SV826 — Parts and Components

Use this guide to identify each part of your SV826 — useful when you read the cleaning or troubleshooting articles.

The 12 main parts

1. Buttons — short coffee and long coffee.
2. Sliding cover — opens to insert the capsule.
3. Upper body — top section housing the brewing unit.
4. Dispensing nozzle — the spout where coffee comes out.
5. Dispensing spout — the visible end of the dispenser.
6. Capsule drawer — collects spent capsules; pulls out from the front.
7. Drip tray grid — sits under the cup.
8. Cup lift — raises small cups closer to the spout.
9. Drip tray drawer — collects drips; pulls out from the front.
10. Water tank lid — covers the water tank.
11. Water tank — 850 ml capacity, removable from the rear.
12. Lower body — base of the machine.

Tip: when using espresso cups keep the cup lift in place; remove it when you switch to a mug.
